wrench 87
New Member
I was just looking for opinions on using temco 10 awg pv wire it is stranded but course,should you use a crimp ferrule going in to the dc breaker pros and cons.
pv wire and ferrule question
- Thread starter wrench 87
- Start date
timselectric
If I can do it, you can do it.
- Joined
- Feb 5, 2022
- Messages
- 24,584
It depends on what type of terminal is on the breaker. And how fine the strands are in the conductor.
If the terminal is a clamping type. No ferrule is needed.
If it's a set scew type of terminal. The screw can damage fine strands as it's tightened. And a ferrule will protect the strands from damage.
If the terminal is a clamping type. No ferrule is needed.
If it's a set scew type of terminal. The screw can damage fine strands as it's tightened. And a ferrule will protect the strands from damage.
wrench 87
New Member
it is a clamping type, so no ferrule. thanks again
kolek
Inventor of the Electron
- Joined
- Sep 29, 2021
- Messages
- 1,123
@AntronX @rhino @timselectric @Skypower
So anytime you have a set screw type of terminal, you should always use a ferrule? This is completely new information for me and means I need to redo some things in my system. Which brand or type of ferrules do you recommend?
Can you also please address this comment which has been upvoted by a few people claiming that ferrules shouldn't be used on some set screw type terminals? Are these guys wrong, or there's exceptions, or...?
Last edited:
timselectric
If I can do it, you can do it.
- Joined
- Feb 5, 2022
- Messages
- 24,584
Only if the conductors have fine strands that can be damaged by the set screw. (Twisting against them)
timselectric
If I can do it, you can do it.
- Joined
- Feb 5, 2022
- Messages
- 24,584
Those are clamp style terminals in the video.
kolek
Inventor of the Electron
- Joined
- Sep 29, 2021
- Messages
- 1,123
I checked Google image search for that keyword and I cannot distinguish "clamp style" from "screw type"
They both have screws?
orion7144
New Member
The clamp style lifts a clamp up when tightening whereas the screw type, when you tighten the screw, the screw is pushing on the wire.
kolek
Inventor of the Electron
- Joined
- Sep 29, 2021
- Messages
- 1,123

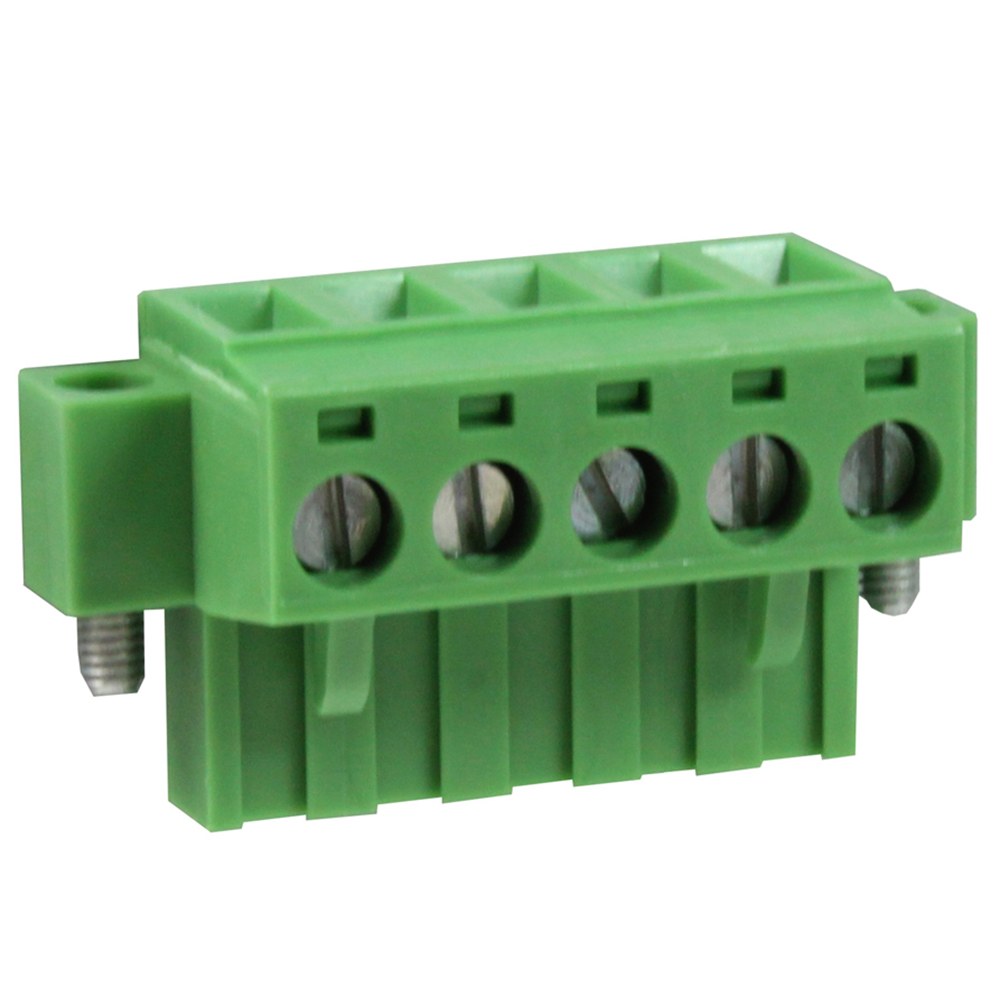

I recognize this is "clamp style"
I recognize this as screw type:
Is that correct?
I recognize this as screw type:
Is that correct?
orion7144
New Member
This is a clamp style breaker. The serrated "clamp" tightens the wire when the screw is tightened. The screw type would just be the screw pushing the wire .
robbob2112
Doing more research, mosty harmless
timselectric
If I can do it, you can do it.
- Joined
- Feb 5, 2022
- Messages
- 24,584
I have this style breaker and it is designed for stranded wires. The serrated surface isn’t raised so it does little to help retain the wire. After tightening 10 AWG thhn, I found that I could wiggle the wire out after using reasonable amount of tightening torque without distorting the case. TEMCo 10 AWG solar wire wasn’t as bad as for poor retaining, probably due to the finer strands. For both types of wire I found out that stripping the wire twice as long as normal and folding it in half then inserting into the terminal keeps it in place. You will also need to follow up on tightening a few times as the strands settle. I’ve had them a couple years now with no problems just be sure that the screws are snugged up! Remember that the screws are live and you don’t get dead.
I tried ferrules in these and they got hot and not sure why but ferrules here are not the answer for me.
kolek
Inventor of the Electron
- Joined
- Sep 29, 2021
- Messages
- 1,123
I like this idea. Makes sense that it would work better. I'm going to try it when I connect to grid using the "clamp type" on my inverter.
robbob2112
Doing more research, mosty harmless
Ferrules get hot if they are not the right size for the wire and aren't full when crimped. Or if the walls are to thin or to thick. Or if you use the wrong shape crimper. For your picture it would need the 4 sided crimper.
Only needed it the wire is fine stranded. For the solid did you use a torque screwdriver and get it tight enough?
Three squeeks is not the same as a torque wrench of screwdriver
meetyg
Solar Addict
- Joined
- Jun 4, 2021
- Messages
- 1,498
I have a similar breaker and 10awg PV wire.
Although the strands are pretty thick, I preferred to use ferrules. No problems so far.
timselectric
If I can do it, you can do it.
- Joined
- Feb 5, 2022
- Messages
- 24,584
This is the best possible connection for a clamp style terminal.
timselectric
If I can do it, you can do it.
- Joined
- Feb 5, 2022
- Messages
- 24,584
Ferrules have their place.
A clamp style terminal is not it.
Can the right conductor with the right ferrule and right shape of crimp, be good enough. Yes
But good enough is never my goal for connections. The best possible connection for the situation is my goal.
A clamp style terminal is not it.
Can the right conductor with the right ferrule and right shape of crimp, be good enough. Yes
But good enough is never my goal for connections. The best possible connection for the situation is my goal.
It was a four sided crimp with a 10 AWG ferrule. I spotted the heat by chance with thermal imaging as I swung the camera past. The torque was set by years of experience, common sense and not wanting to break or tweak the dang thing. It wasn’t a case of less is more.
robbob2112
Doing more research, mosty harmless
Well, unless it was a mis-marked ferrule off amazon instead of a reputable place it must have been
PFM - Pure F*@# magic
Yes, that is another technical term for the boot. That along with 'Three squeeks'
Abracadabra
